POWER SUPPLIES, SIGNAL ISOLATORS

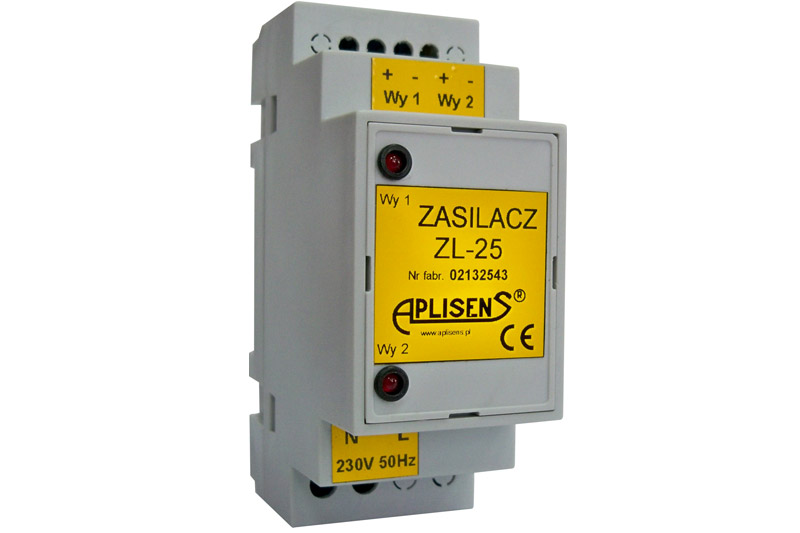

Power supply ZL-25-01
✓ Output power supply 2x24 V DC
✓ Maximum output current 2 x 50 mA
✓ Indication of presence of output voltage
✓ Permanently resistant to short circuits and excess voltage
✓ Casing can be fitted on a standard rail (TS35, TS32)

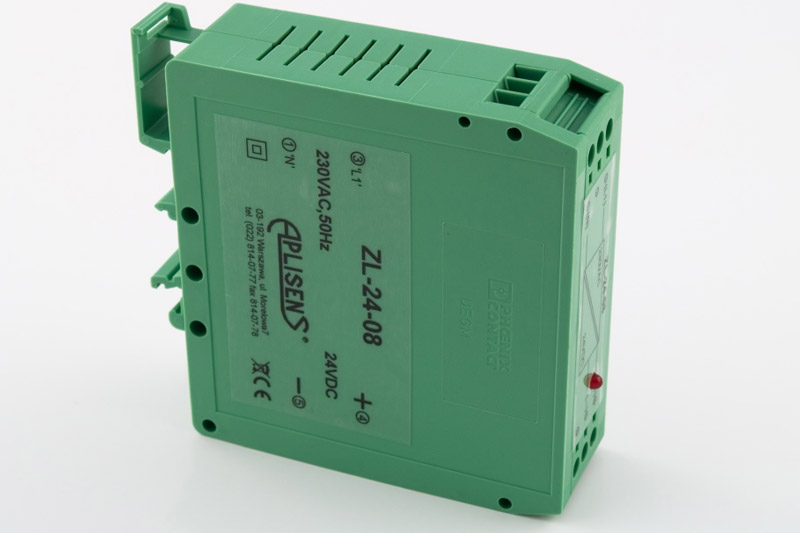

Power supply ZL-24-08
✓ Maximum output current 800 mA
✓ High energy efficiency
✓ Indication of the presence of output voltage
✓ Permanently resistant to short circuiting and excess voltage
✓ Overvoltage protection
✓ Casing can be fitted on a standard rail (TS35, TS32)

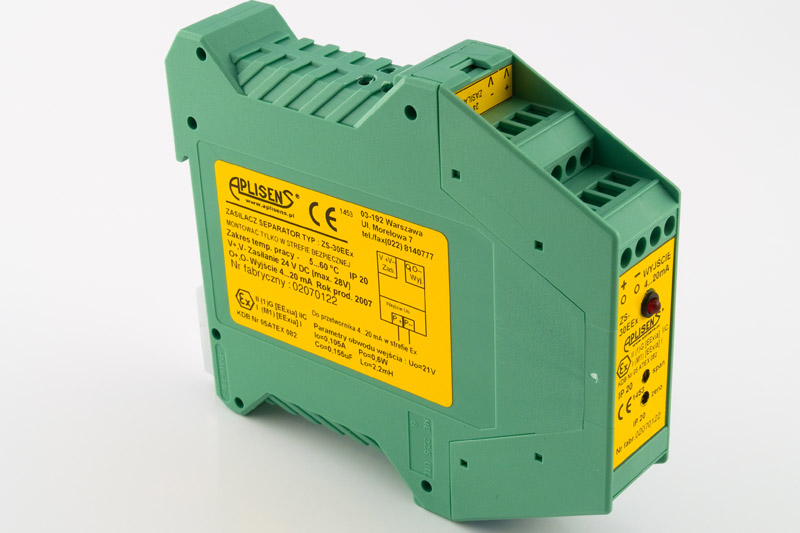

Intrinsically safe power supply and isolator ZS-30Ex1
✓ Ex-rated intrinsically safe
✓ Full galvanic separation of circuits (IN-OUT, IN-SUPPLY, OUT-SUPPLY)
✓ Accuracy 0,1%
✓ Casing can be mounted on a standard TS35 rail

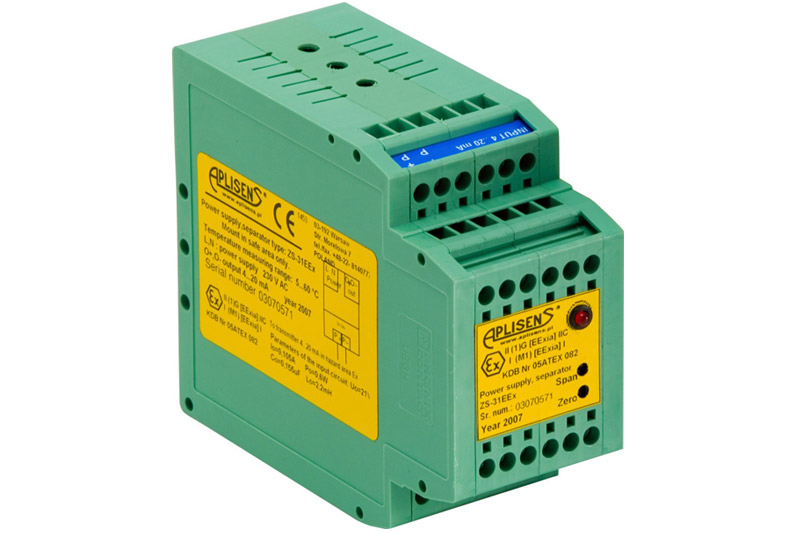

Intrinsically safe network power supply and isolator ZS-31Ex1
✓ Ex-rated intrinsically safe
✓ Full galvanic separation of circuits (IN-OUT, IN-SUPPLY, OUT-SUPPLY)
✓ Accuracy 0,1%
✓ Casing can be mounted on a standard rail (TS35, TS32)

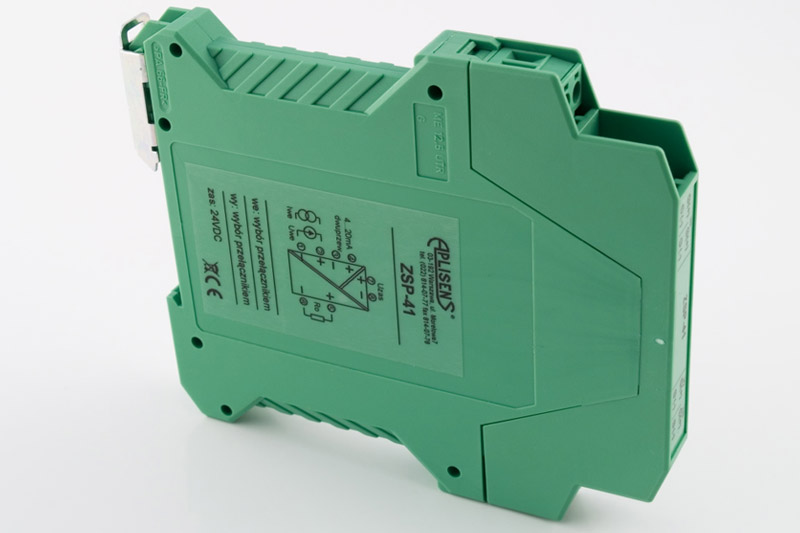

Power supply/isolator/signal converter ZSP-41
✓ Full galvanic separation of circuits (IN-OUT, IN-SUP, OUT-SUP)
✓ Ability to select input and output signals
✓ Ability to use input line to power a two-wire transmitter
✓ Casing can be fitted on a standard rail (TS35)

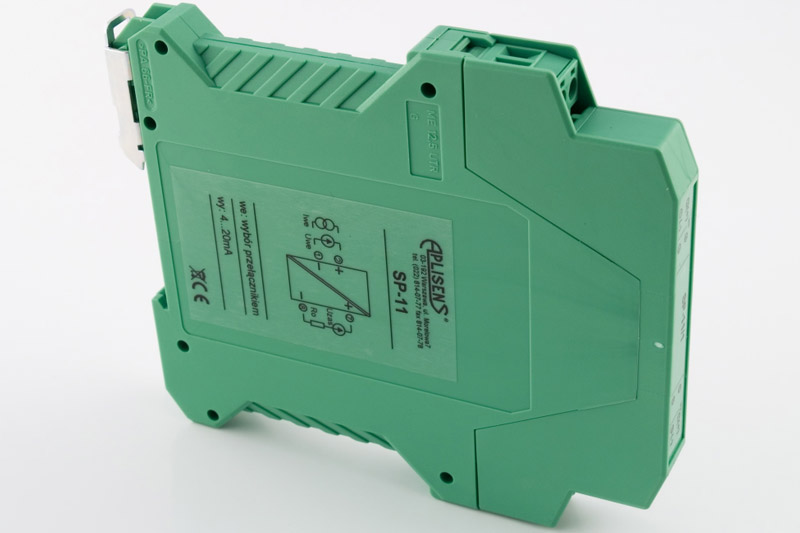

Isolator/signal converter SP-11
✓ Single circuit or dual circuit version in 12,5 mm wide casing
✓ Opto-electronic galvanic separation (IN-OUT)
✓ Ability to select input signal
✓ 9...36 V power supply in the output signal loop
✓ Casing can be fitted on a standard rail (TS35)

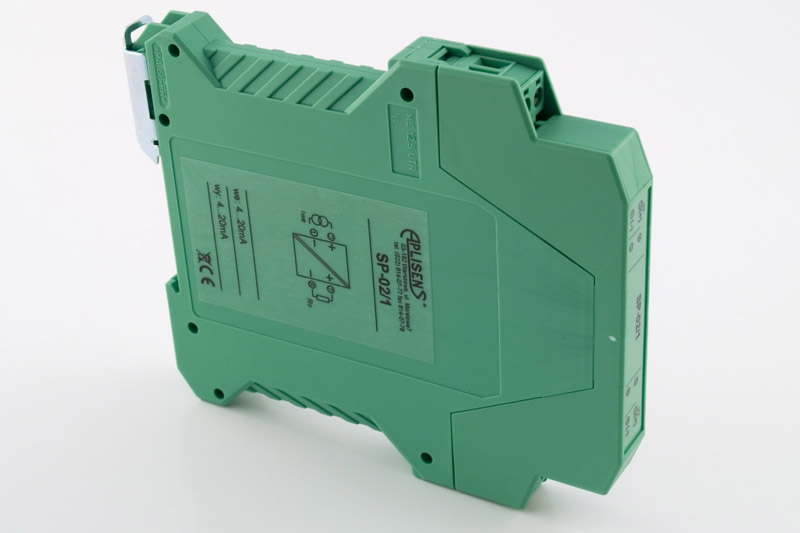

current signal isolator without auxiliary power SP-02
✓ Single circuit or dual circuit version in 12,5 mm wide casing
✓ Accuracy 0,16%
✓ Casing can be fitted on a standard adapter (TS35)

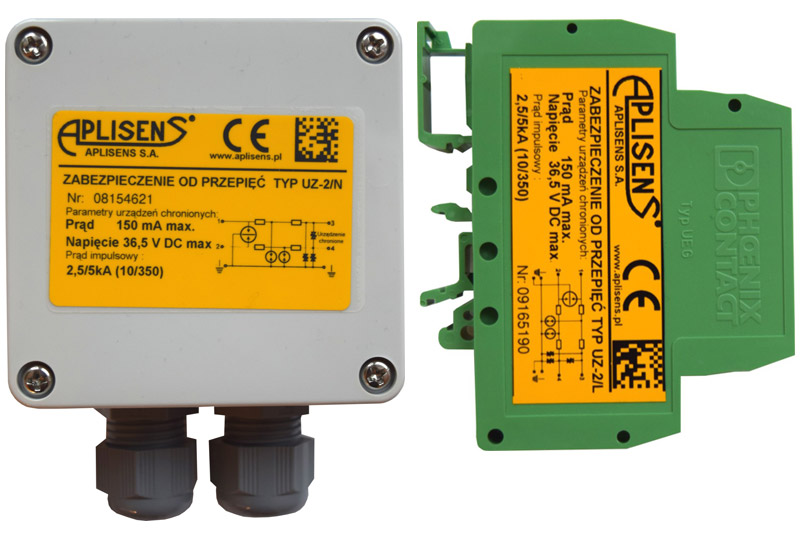

Overvoltage protection circuit UZ-2
The UZ-2 protection circuit is designed to provide overvoltage protection for measurement transmitters and auxiliary devices.
