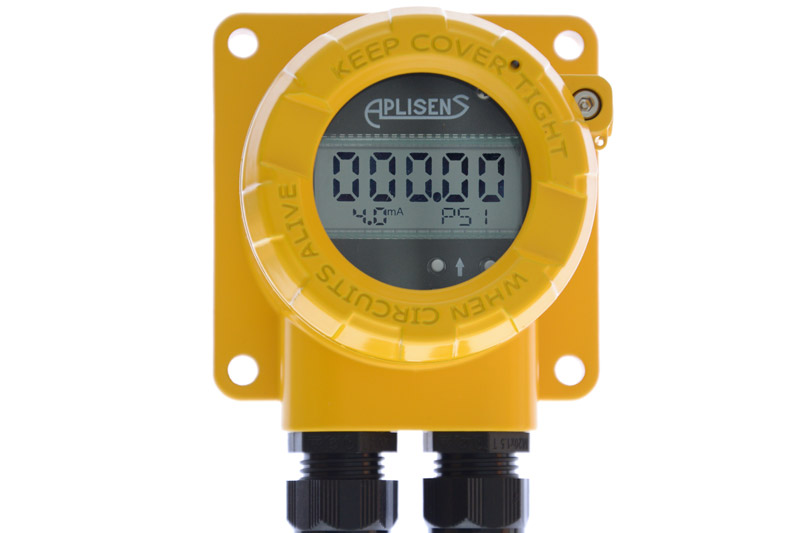

Display monitor of double circuit line without auxiliary power system WW-11ALW

✓ Backlight display 5 x 10 mm
✓ Current input 4...20 mA
✓ Aluminum, wall or pipe mounted casing
✓ IP66
✓ Intrinsic safety certificate

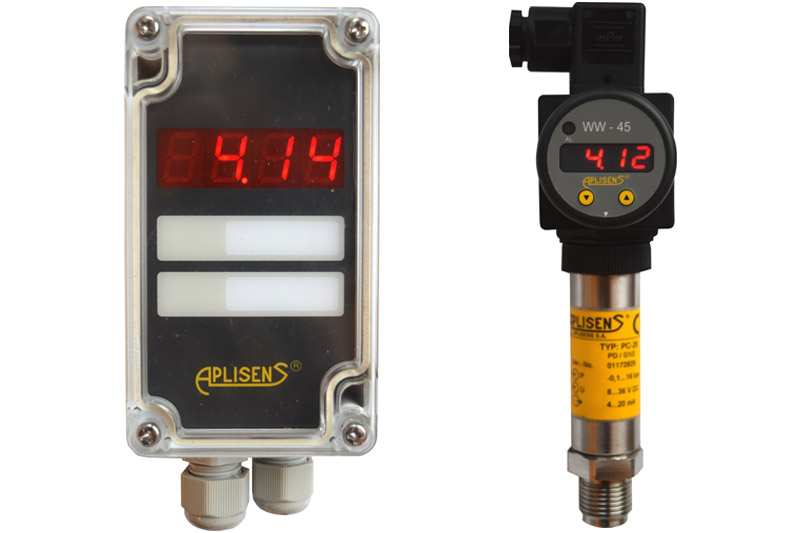

Displays type and monitors of two-wires circuit without auxiliary power system WW-11N , WW-45

Display WW-30, WW-30T

✓ 4..20mA or 0...20mA current input (WW-30)
✓ 0..5V, 1..5V, 0..10V, 2..10V Voltage input (WW-30)
✓ Pt100, Resistant input (WW-30T)
✓ Power supply 230 V AC a 10%

Digital indicators with relay outputs PMS-920, PMT-920

✓ 4..20 mA or 0..20 mA current input (PMS..920) 0..5V, 1..5V, 0..10V, 2..10V voltage input (PMS-920) Pt100 - resistant input (PMT-920)
✓ Two settable relay outputs: 1 A, 230 V AC
✓ Power supply 230 V AC ( optional 24V AC/DC)
✓ Integrated power supply 24 V DC

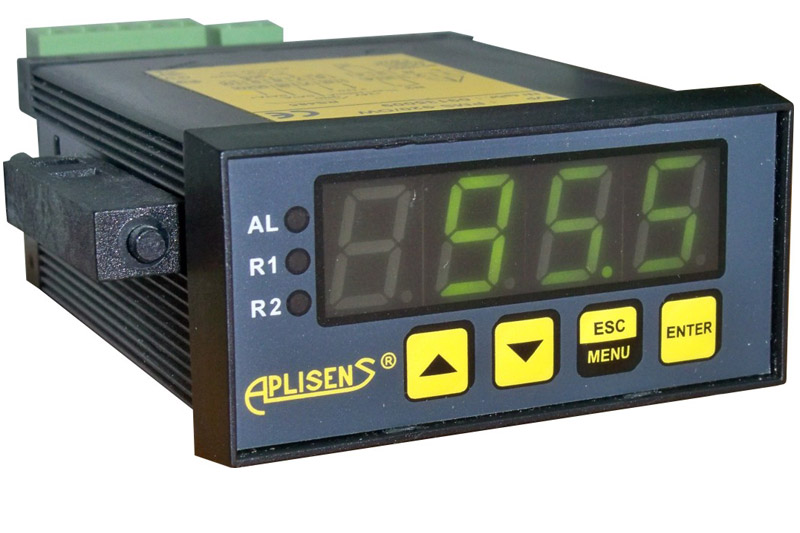

Digital indicator with relay outputs PMT-920

✓ Input Pt100 2-, 3-, 4-, wires
✓ 2 relays outputs: 1A, 230 V AC
✓ Power supply: 230 V AC a 10%/1.5VA

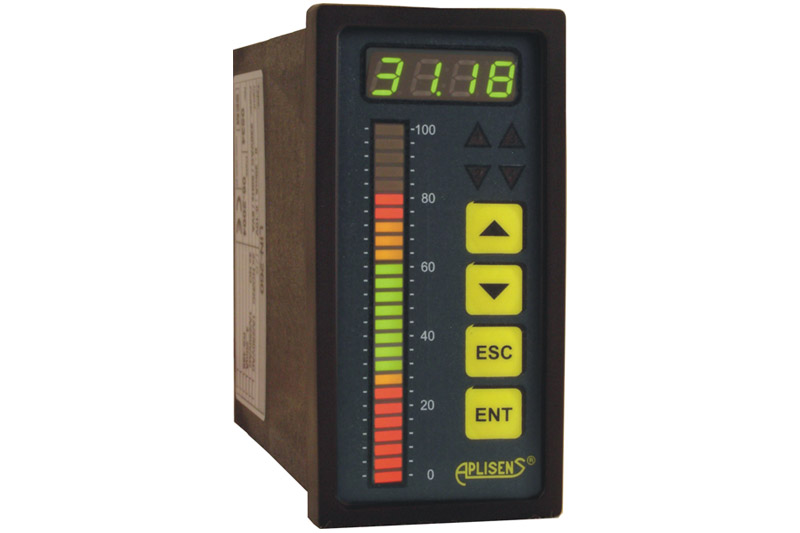

Digital indicator with relay outputs PMS-970T

✓ Universal measuring input 4...20 mA, 0...20 mA or 0...10 V
✓ 4 relay outputs: 1 A, 230 V AC
✓ 4x7 mm LED display + 26-point bar graph
✓ Integrated power supply 24 V DC
✓ Additional options: Power supply 24V AC/DC passive current output RS-485 digital output

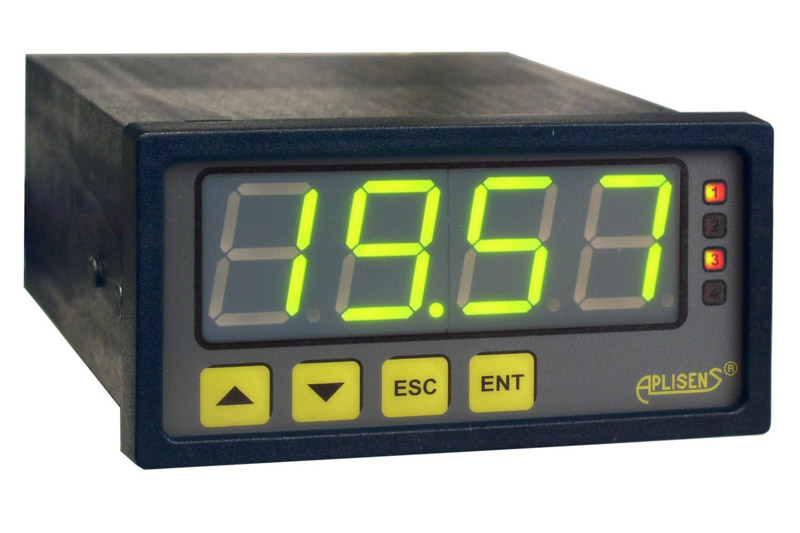

Digital indicator with relay outputs PMS-970P

✓ Universal measuring input 4...20 mA, 0...20 mA or 0...10 V
✓ 4 relay outputs: 1 A, 230 V AC
✓ 4 x 20 mm red LED display
✓ Integrated power supply 24 V DC
✓ Additional options: Power supply 24V AC/DC passive current output RS-485 digital output

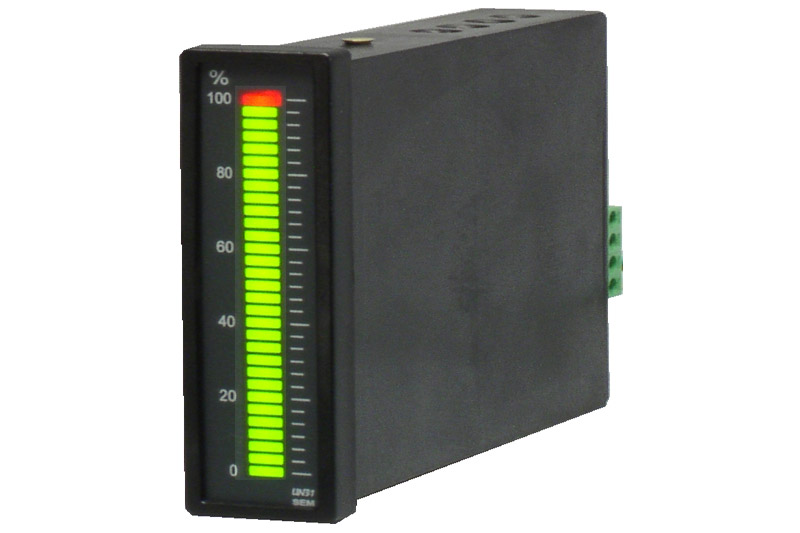

linear indicator LIN-31

✓ Current or voltage input (switched)
✓ LED display: 31-point bar graph

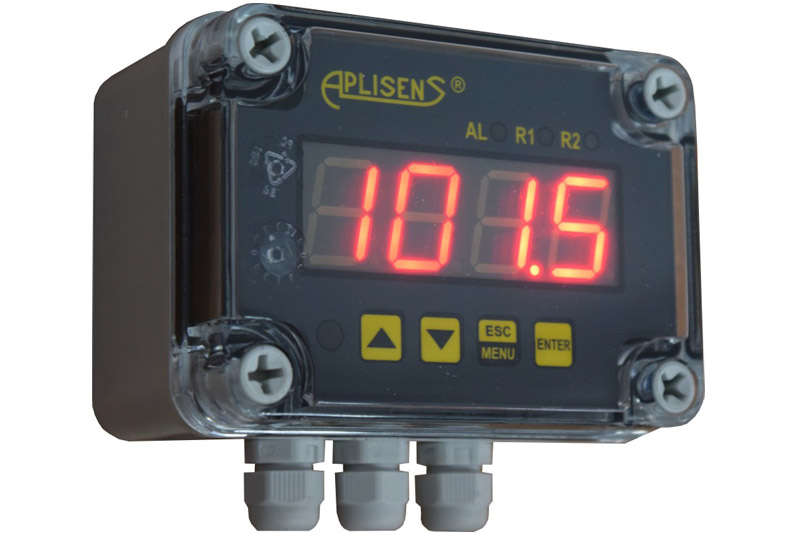

Digital indicator with relay outputs PMS-620N

✓ 4 x 20 mm red LED display
✓ Universal measuring input 4..20mA, 0..20mA or 0..10V
✓ Two relay outputs: 1 A, 230 V AC
✓ RS-485 digital output
✓ Integrated power supply 24 V DC
✓ Wall mounted casing

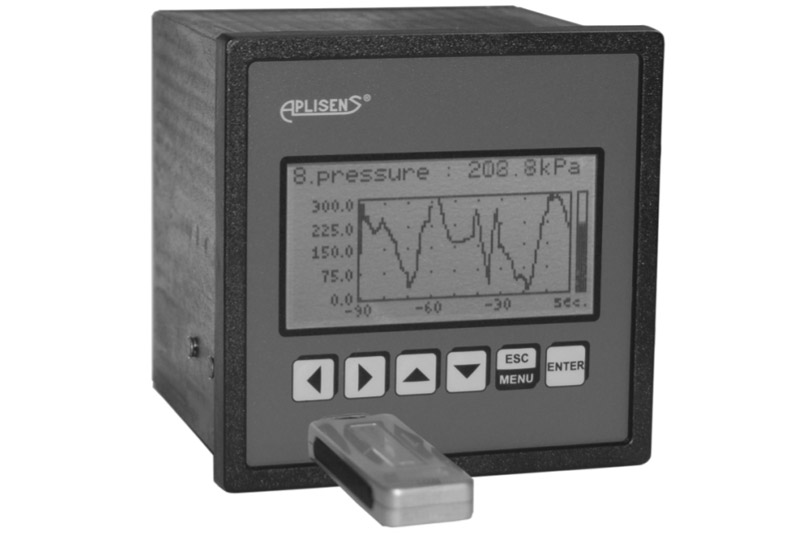

Data logger type PMS-90R

✓ Up to 8 inputs 0/4 20mA or PT100/PT500/PT1000
✓ 1 digital input for recording release
✓ 2 relay outputs in standard (optoMOS)
✓ USB Host port for flush data storage
✓ RS-485 / Modbus RTU
✓ Power supply 19V ÷ 50V DC, 85 ÷ 260V AC
✓ Free configuration and recording software

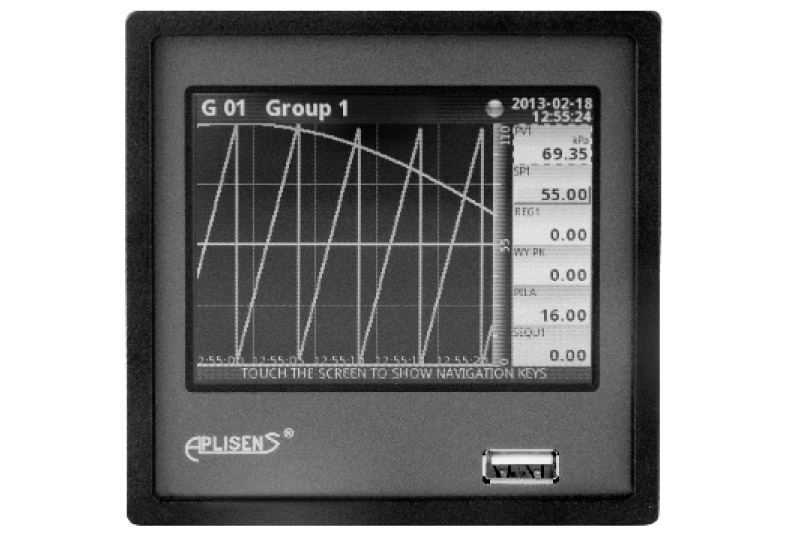

Multichannel controller with data logging capabilities type PMS-110R / PMS-111R

✓ compact multichannel controller with data logging capabilities
✓ analog / digital /universal inputs
✓ thermocouple / RTD inputs
✓ counter / flowmeter/ ratemeter inputs
✓ current or relay / SSR outputs
✓ USB Host port for flush data storage
✓ free configuration and recording software
✓ 3.5"/5.7 TFT, 320 x 240 pixels, touchscreen navigation
